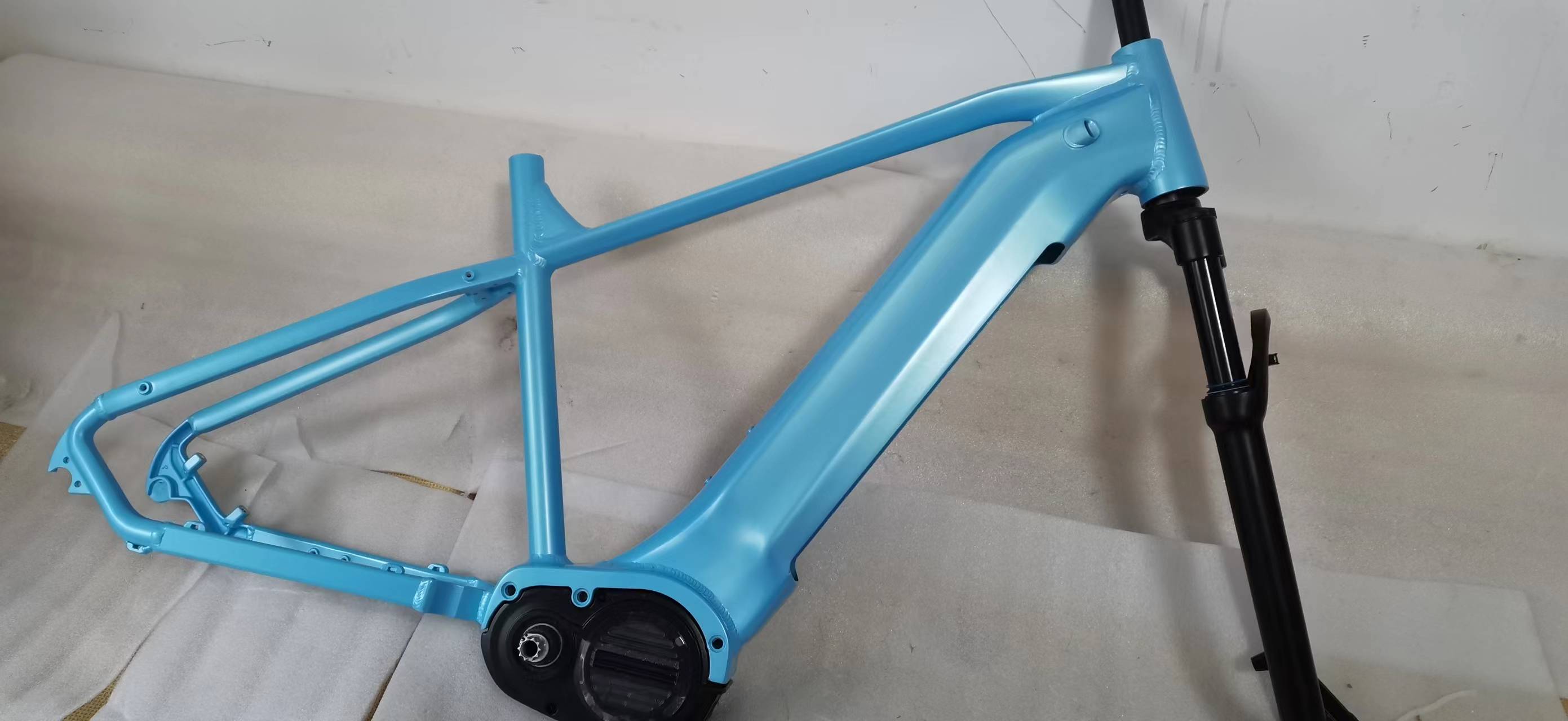

Bafang G510 1000W Electric Bike Frame M620 Mid-Drive Ebike
Features:
1) Riding Style: Hardtail Trail/Am E-Bike Frame,Slope Headtube Angle 67 degree with Fork Appicable: 120-160mm Applicable.
2) Motor Applicable: Bafang M620/G510 Mid-Drive Motor.
3) Integrated Downtube for hiden Battery pack 80 cells 18650 or 60 cells 21700(48v/21ah or 52v/20ah)
4) 27.5 Boost Wheel Size Max. tire 27.5x2.80 or 29x2.40 intensified with Forced Yoke.
Wide Tire increases the riding stablitity.
5) Bafang Motor and Battery Pack or Box can be supplied with the frame for easy assembly.
6) Samples or small batch order are available to Supply.
Technical Data:
| Product Name | Bafang 1000w Mid Drive Ebike Frame |
| Model: | LDE6035 |
| Material | Aluminum Alloy 6061, T4 &T6 |
| Welding | TIG+Smooth Welding |
| Wheel Size | 29er/ 27.5+ |
| Motor | Bafang M620/G510 Ultra 1000w mid-drive motor |
| Battery | Integrated downtube for 80 cells (48v/21ah or 52v/20ah) |
| Size | 17", 19", 21" |
| Dropout | 148x12 thru-axle |
| Max. Tire | 29"x2.35 or 27.5x2.80 |
| Headset | Tapered(44-56mm) |
| Routing | Inner Cable routing |
| Head tube angle | 67 degree |
| ChainStay | 440mm |
| Brake | Disc (post mount) |
| Seatpost | 30.9 mm |
| Weight | 3100grams(18") |
| Type | Hardtail Trail/Enduro E-bike |
| OEM | Acceptable |
